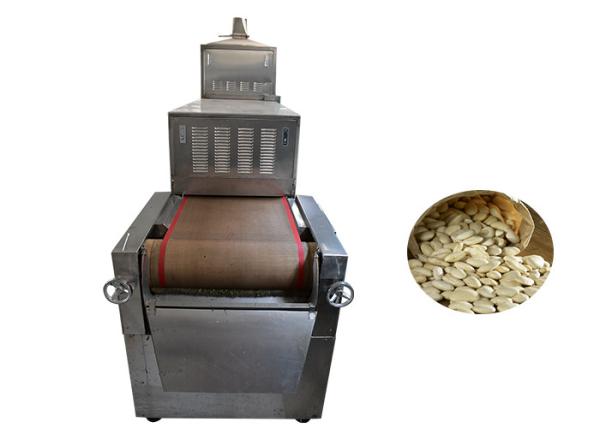

China Automatic Industrial Continuous Good Reputation Conveyor Belt Microwave Soybean Dryer Machine
Technology Parameters:
| Machine Name |
Microwave drying machine |
| Total Power Input |
180kW |
| Model |
HD-120CD |
| Microwave Output Power |
120kW Tunnel structure, Power can be adjusted |
| Microwave Frequency |
2450MHz±50MHz |
| Dimensions |
18500×1450×1800㎜ |
| Height of Feeding |
60mm |
| Width of Conveyer Belt |
1200mm |
| Conveyor Speed |
0.5～10 m/min |
| Operating Temperature |
-5～40℃ |
| Surrounding |
Without corrosive gas, conductive dust and gas explosion |
| Wooden Cases |
Export standard fumigation wooden cases |
Microwave Drying Machine Description:
Adopt PLC control, Microwave power group is adjustable, transmission speed adjustable frequency conversion. Through current feedback shows the working state of the magnetron. Even if a group does not work, also does not affect the normal work of the other group of microwave, the damage group can wait stop and check, maintenance. In the final group heating cabinet equipped with American raytek infrared thermometer, can online test, the heating temperature of display materials.
Advantages:
1.Easy to control
Microwave dry operation sterilization, the equipment can be used immediately, without the thermal inertia of conventional thermal sterilization, the operation is flexible and convenient, the microwave power is adjustable, the transmission speed is continuously adjustable from zero, and it is easy to operate.
2. Simple equipment and advanced technology
Compared with the conventional method, the microwave equipment does not require a boiler, a complicated piping system, a coal yard and a transportation vehicle, and a tunnel type microwave sterilization equipment, as long as it has basic conditions of water and electricity.
PACKAGE:
| 1. |
Delivery Term: FOB Qingdao, by vessel |
| 2. |
Delivery Time: 45 working days |
| 3. |
Payment Terms: T/T (30% to pay by T/T as down payment , the rest 70% is paid by T/T before delivery.) |
| 4. |
Installation / Operation / Service / Manual: In English |
| 5. |
Installation team: Commissioning service provided for 4-7 days. The client bears the technician’s round-trip flight tickets, accommodations and daily salary of USD 80. |
| 6. |
Warranty: One year from the date of completion of the commissioning |
| 7. |
Pre-shipment Inspection: Supplier should trial run whole line at supplier’s factory before shipment. |
Product Tags:
|
|
Automatic Industrial Microwave Dryer , Continuous Tunnel Dryer One Year Protection Images
|
